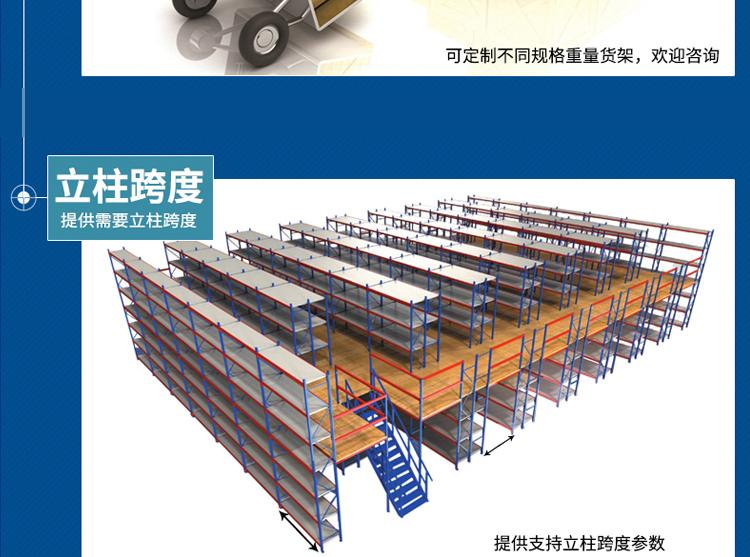

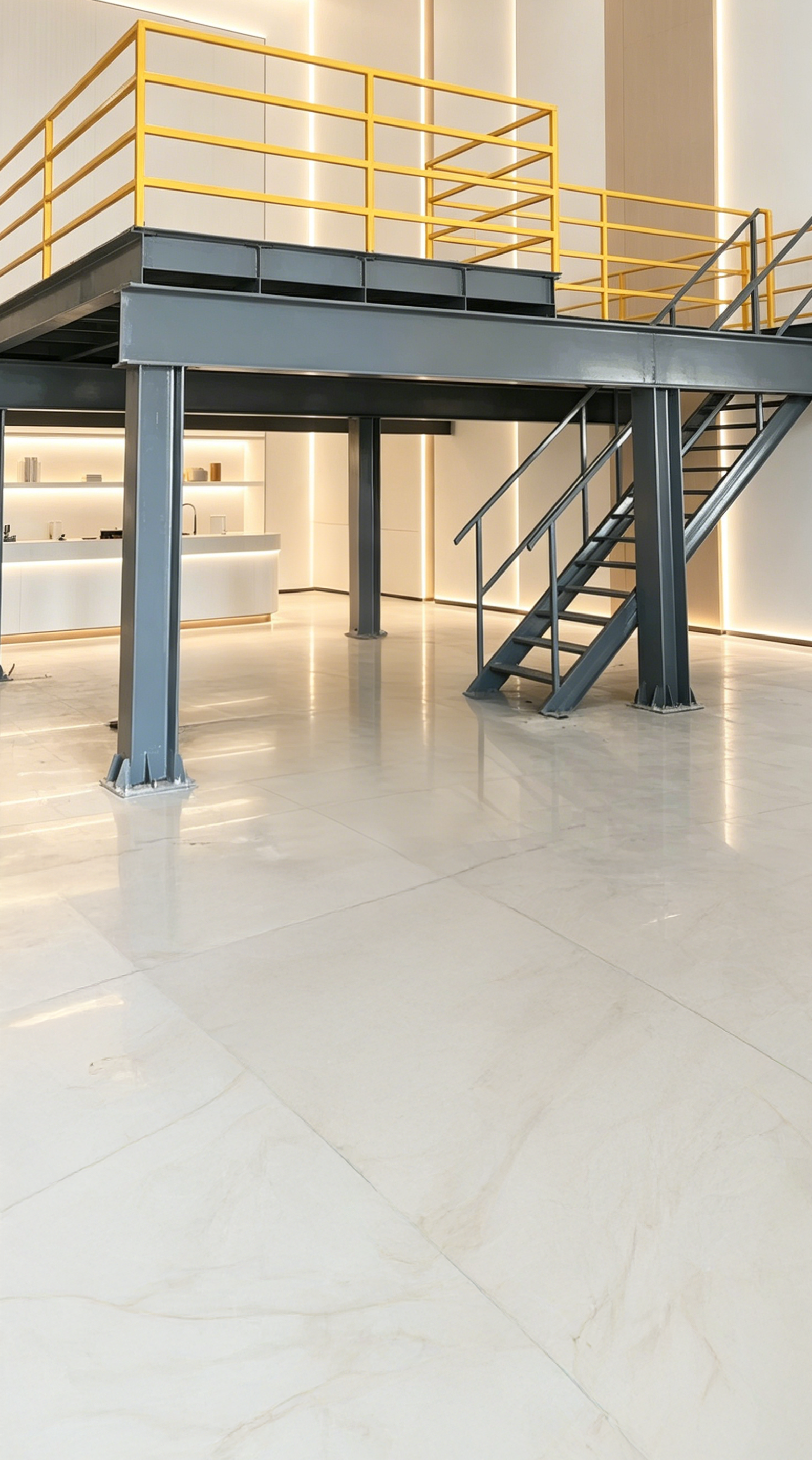

Steel structure platform

Customized steel platform, detachable steel structure shelf platform

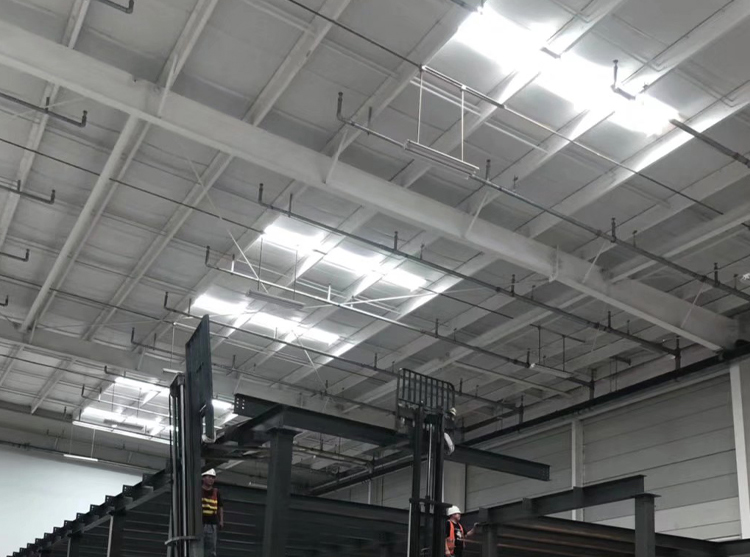

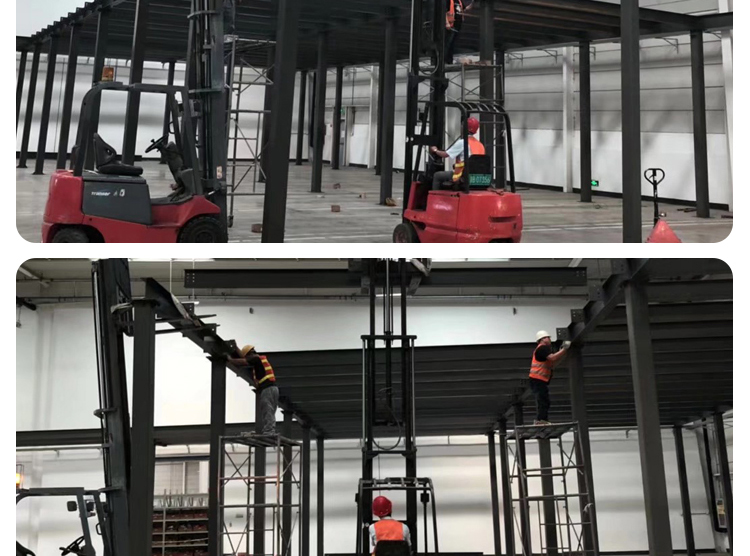

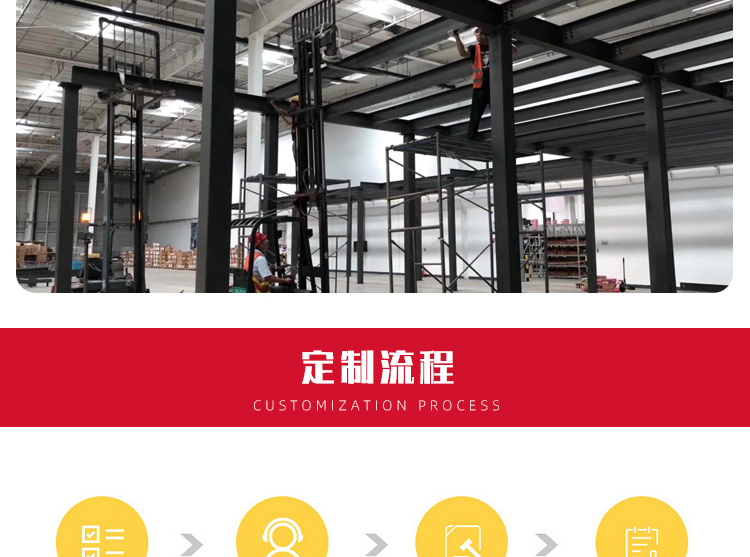

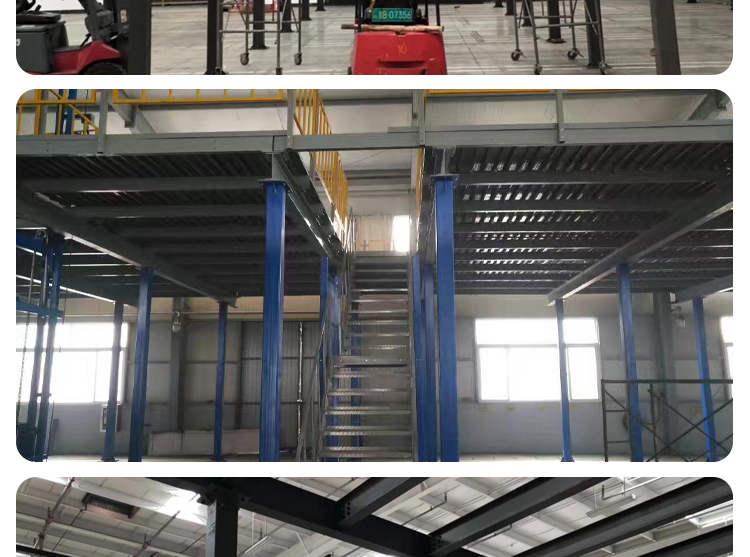

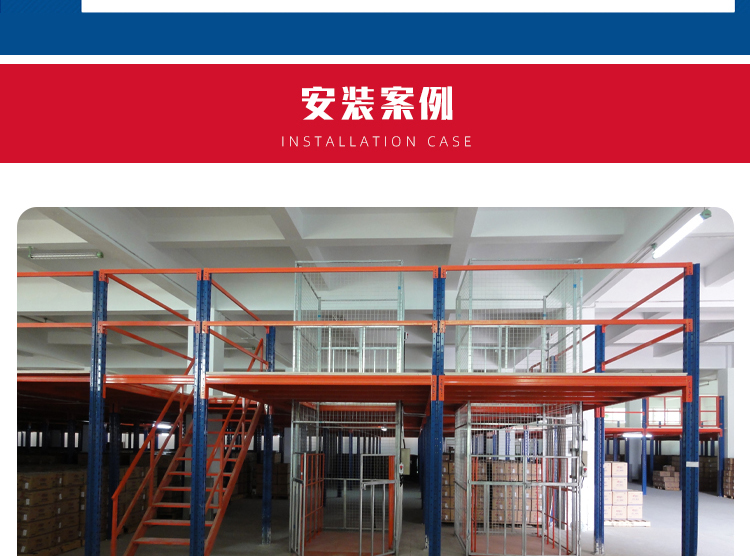

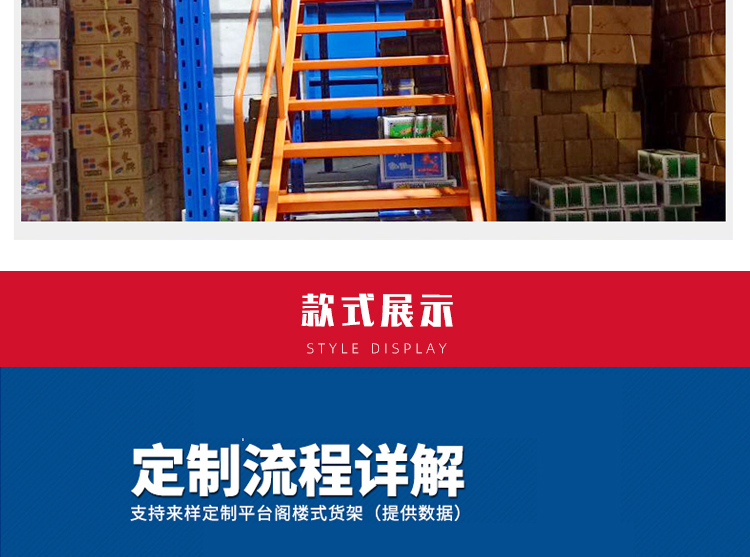

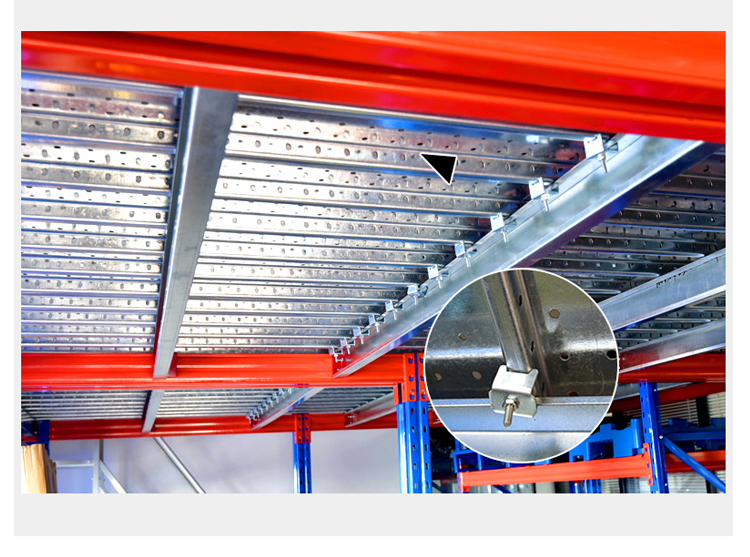

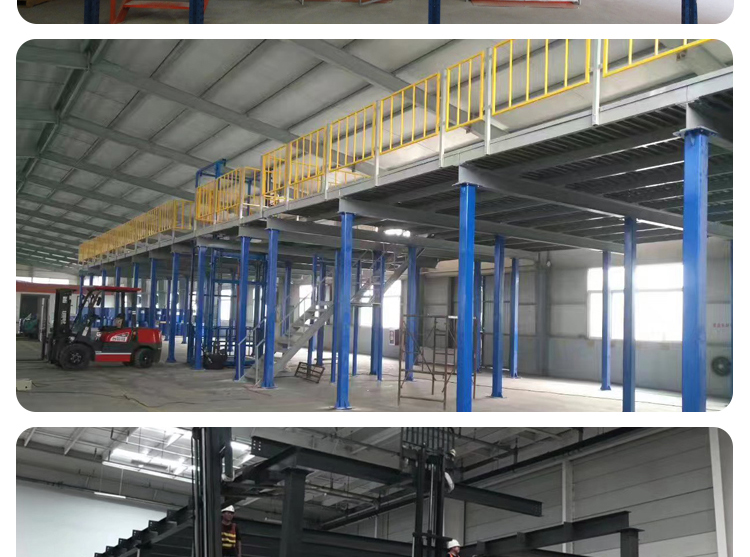

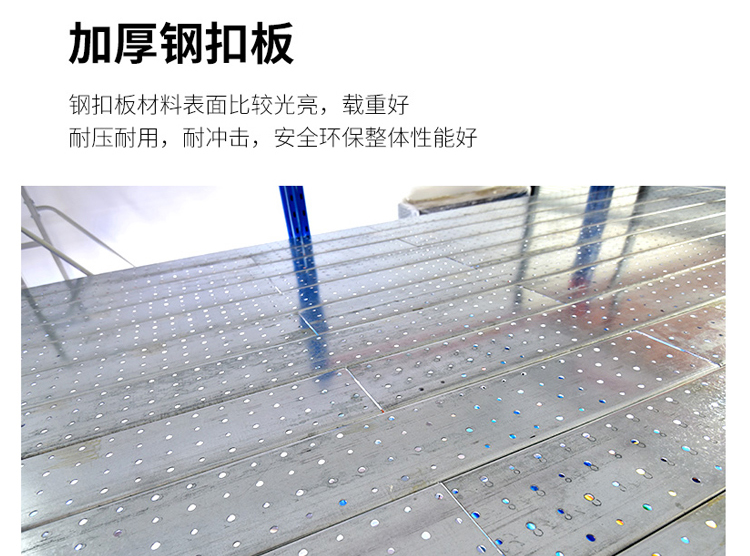

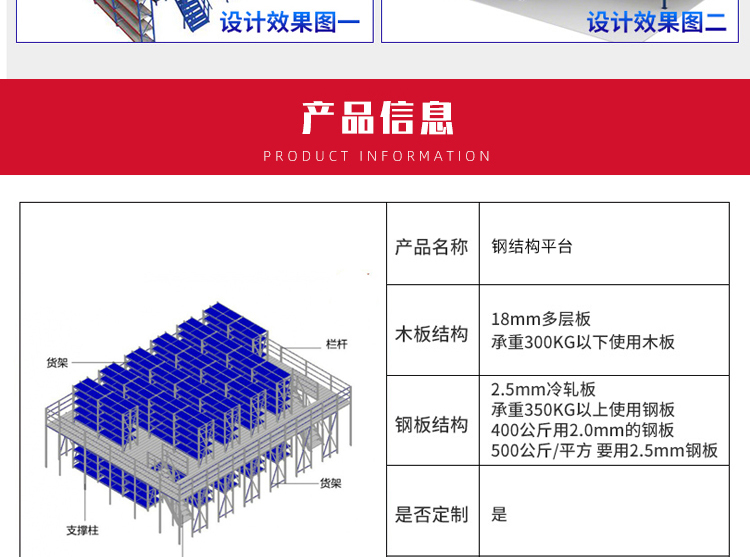

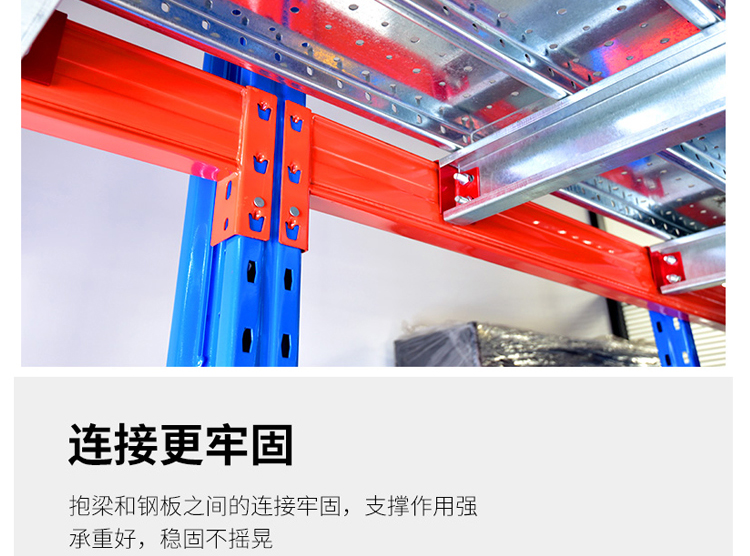

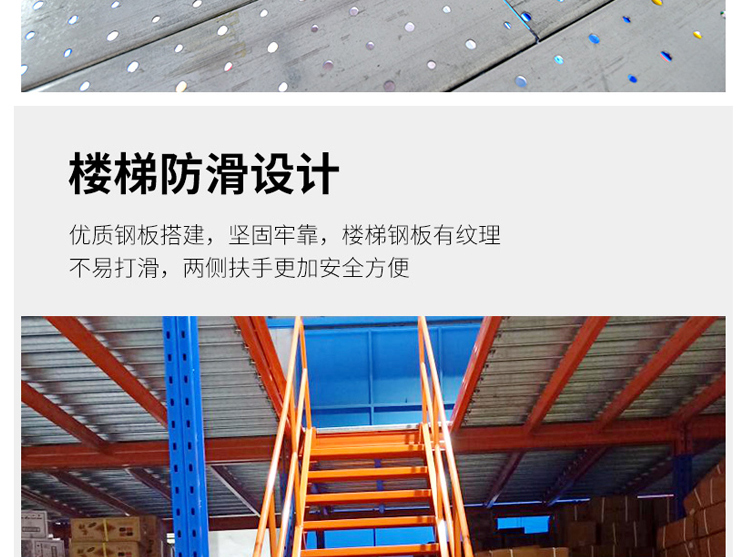

The steel structure platform mainly consists of columns, main beams, secondary beams, floor panels, stairs, and guardrails. Complete assembly without on-site welding. The normal load-bearing capacity is between 300kg and 1000kg/square meter. The column should be made of round pipes with a diameter of 100-160 or square pipes with a diameter of 120-200, which have strong load-bearing capacity and low steel consumption. Platform columns with larger load-bearing capacity and higher height should be made of large H-shaped steel; The main and secondary beams can be selected based on their load-bearing needs, including the most economical and reasonable H-shaped steel currently used in steel structure engineering, as well as the special steel platform C-shaped cold-formed crossbeam developed by our company; The floor panels are made of specialized cold-formed patterned steel plates, flat plates, or hollow panels, using a buckle type structure that is rigidly fixed to the main and secondary beams, resulting in a strong overall integrity of the entire platform structure
